AppalachianX
The Nimble Explorer
APPALACHIANX BASE PRICE: $59,500

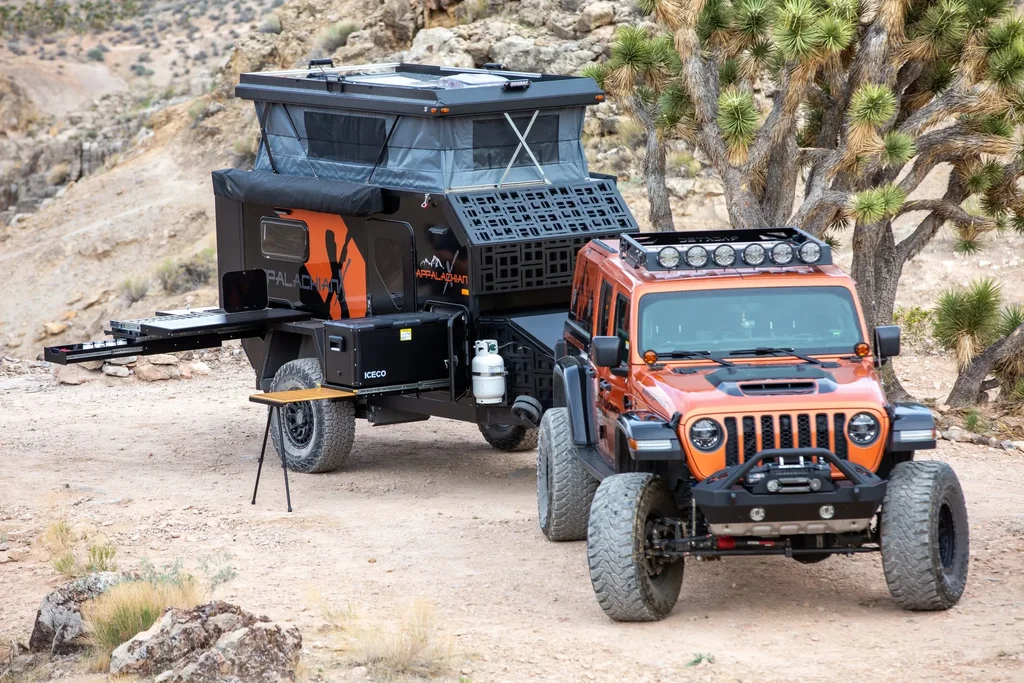

The AppalachianX off-road camper trailer is small but mighty, perfect for adventurers who value capability over size. Built in the USA, this compact powerhouse features a streamlined design that provides comfortable sleeping and cooking capabilities without excess bulk. The lightweight construction consists of fiberglass and foam walls with an aluminum structure, on a 2×5 steel chassis. The base unit has a dry weight of approximately 2,600 lbs and features an intuitive and convenient kitchen design, reliable electrical system, and dependable suspension. Add options like solar panels, additional storage, and comfort features to create your ideal compact adventure platform.
SMALL BUT MIGHTY

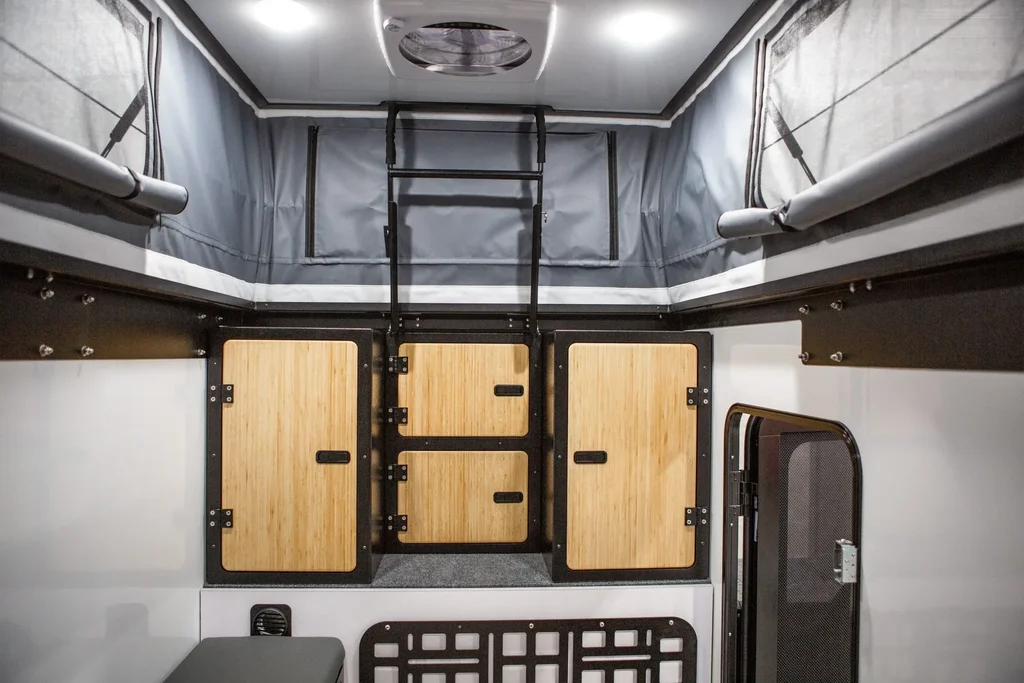

SPACIOUS INTERIOR
The pop-top design provides a comfortable 6'8" of standing room inside giving you freedom to move about the cabin, change your clothes, and hang out at the dinette table before calling it a night.
OFF ROAD. OFF GRID.
Air suspension, high clearance, and all-terrain tires give you confidence off-road and allow you to set up camp far from crowds.
LUXURIOUS KITCHEN DESIGN

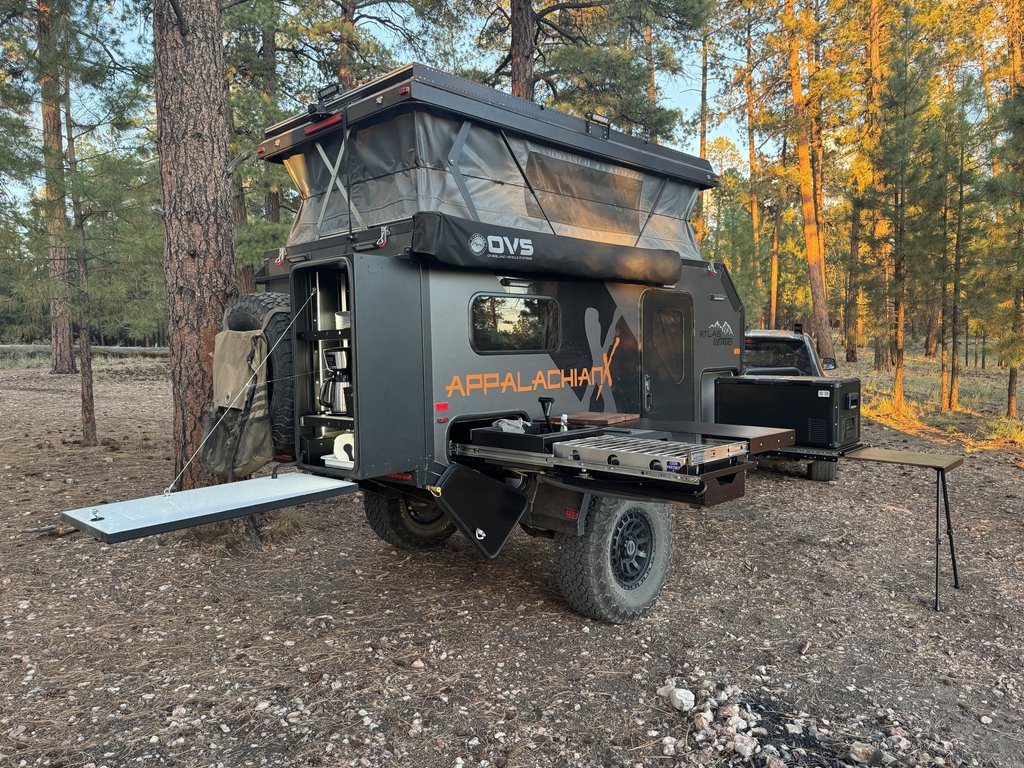

Convenient slide-out kitchen with stove, sink, fridge/freezer and plenty of counter space. Meal prep is easy in any environment.
EASY TOWING
Lightweight construction and balanced design make the AppalachianX towable by most mid-size vehicles.

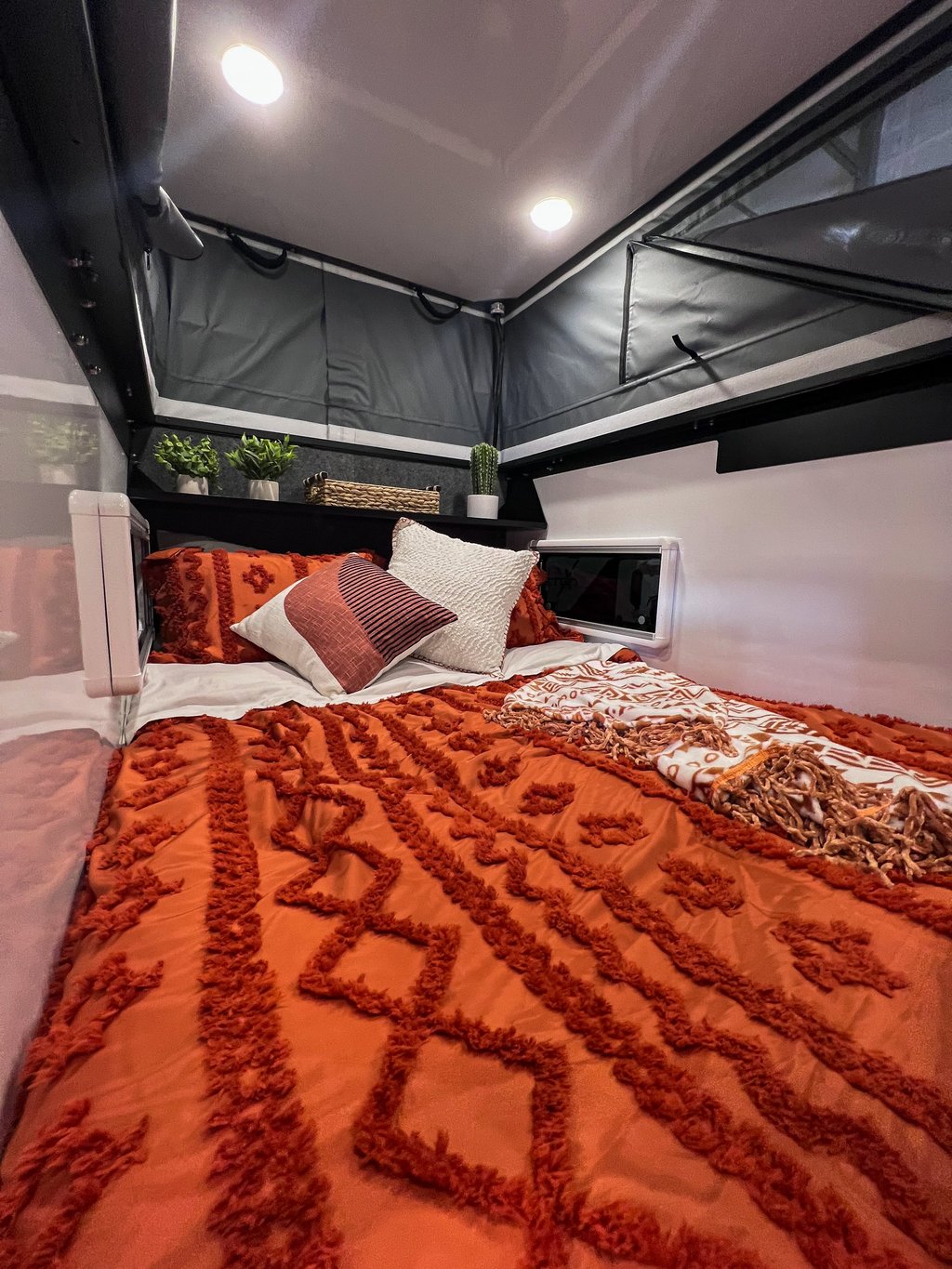

SLEEP IN COMFORT
The AppalachianX trailer includes a cozy double bed—perfect for stretching out after a long day on the trail. Climate control and blackout shades make it feel like you are sleeping at home.
PERSONALIZE YOUR BUILD
Extensive customization options let you tailor your AppalachianX to match your adventure style and needs.
Specifications & Diagrams
Technical specifications, dimensions, and floor plans for the AppalachianX compact overlanding trailer.
Key Specifications
| Specification | Value |
|---|---|
| Starting at | $59,500 |
| Dry Weight (Base) | 2700 lbs |
| Dry Weight (All Options) | 3300 lbs |
| Tongue Weight (Base) | 340 lbs |
| Tongue Weight (All Options) | 430 lbs |
| GVWR | 5500 |
| Overall Length | 203″ (16’11”) |
| Overall Width | 84" (7') |
| Overall Height (Roof Lowered) | 90.25″ (7’6.25″) |
| Interior Length | 120″ (10′) |
| Interior Width | 55″ (4’7″) |
| Interior Height - Roof Lowered | 59″ (4’11”) |
| Interior Height - Roof Raised | 80″ (6’8″) |
| Ground Clearance | 21″ (1’9″) |
| Battery Capacity | 300 AH |
| Inverter Capacity | 3000 VA |
| Water Tank Capacity | 30 gallons |
| Wheel Size | 17 inches |
| Tire Size | 285/70R17 |
Standard Features
Exterior
- OVS 270° Nomadic Awning

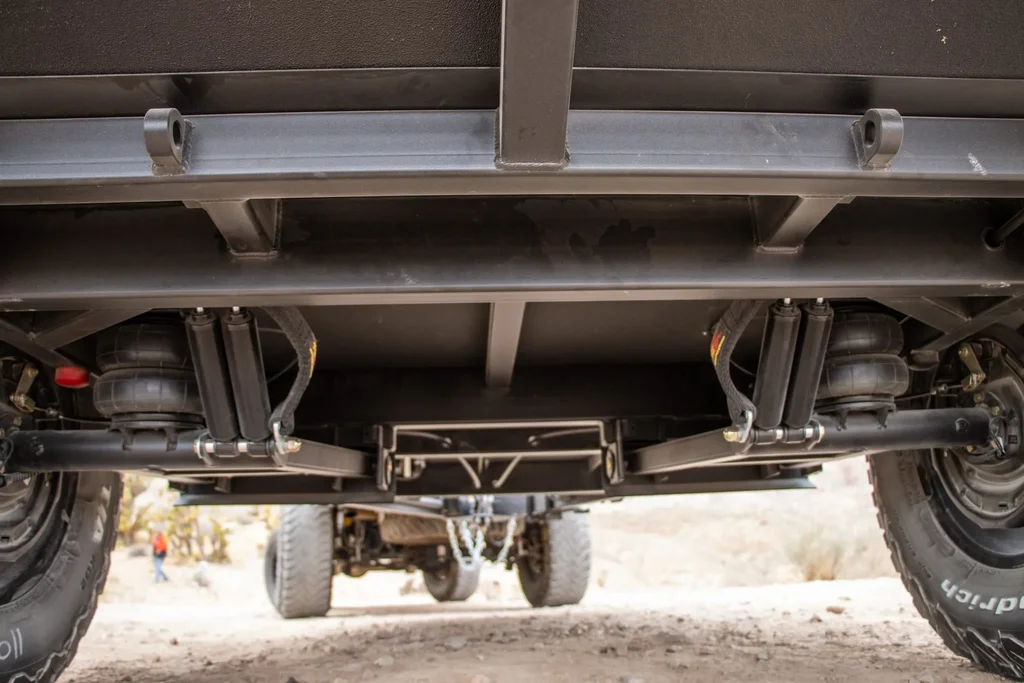

- Nomad Trailing Arm with Air Ride Suspension
- 17x8.5 Wheels
- 285/70R17 BFGoodrich A/T Tires
- Cruisemaster DO35 Articulating Hitch
- Custom Tongue Box

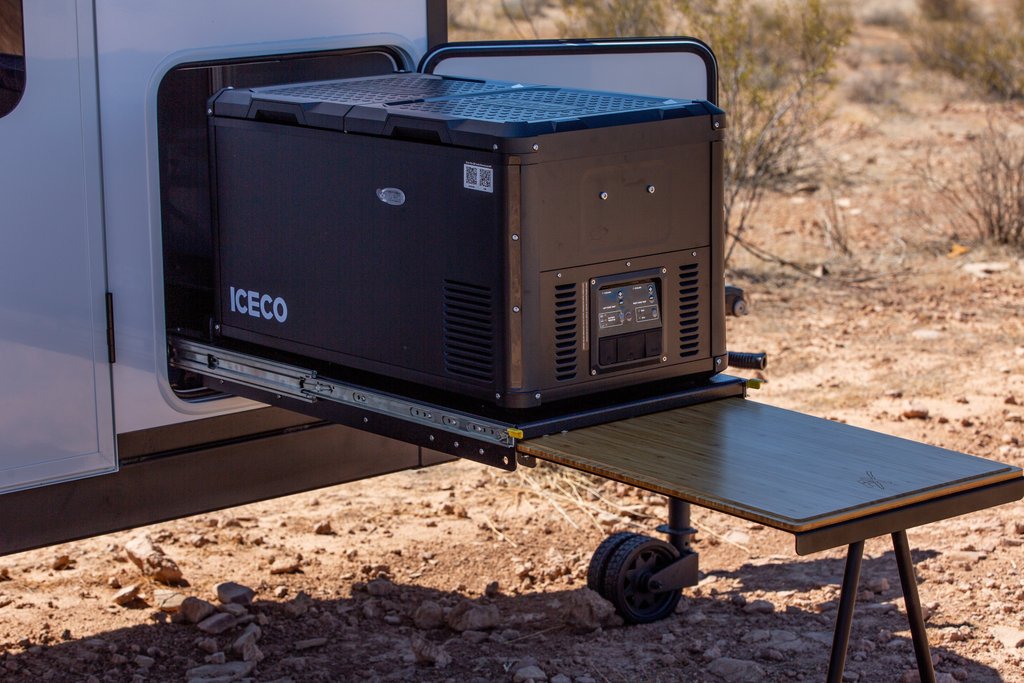

- Front slide out tray with 75L Iceco fridge/freezer

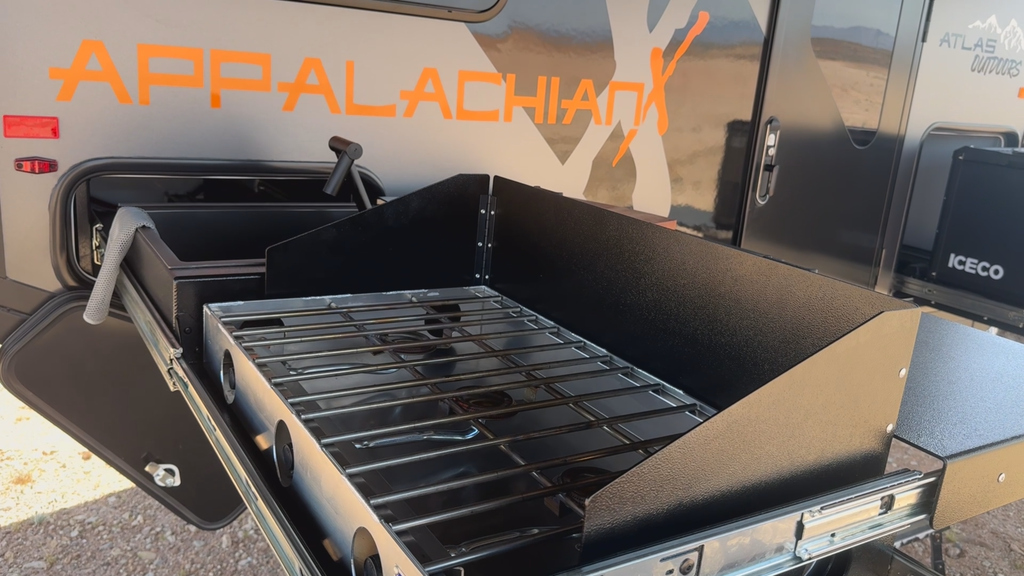

- Rear slide out tray with a sink, 3-burner Partner Steel stove, and sliding countertop
- Dual 11lb propane tanks with lockable mounts
- Amber dimmable rock lighting
- Exterior white/amber lighting
- 110V outlet inside rear cargo door
Interior
- Tri-fold double mattress with custom removable cover
- Truma Aquago Comfort Plus on demand propane water heater
- 30-gallon freshwater tank
- Truma Varioheat propane furnace
- MaxxAir MaxxFan 10-Speed Ventilation Fan
- Front Interior Storage Cabinets
- Dinette table with Lagun table leg
- Dimmable LED lighting on separate switches for front/rear
- Charging stations with 12 volt socket and USB power ports
- (2) 110V outlets
- Flat glass windows with shade/screen
- Pop-up topper with integrated windows
- Waterproof vinyl flooring
Electrical
- Victron 300AH lithium battery
- Victron MultiPlus 3000VA charger with integrated inverter
- Victron GX Touch 50 touch screen monitor
- Victron Orion XS 50A DC/DC charger for vehicle chargeback
- 12V outlet in front storage area for refrigerator power
- Breakaway safety system
- Prewired for roof-mounted solar panels
- SAE sidewall port for up to 400W regulated portable solar panels
- 30A sidewall port for connection to shore power or a generator
- 12V power port externally mounted by awning hinge for additional awning lighting
- Easy access switch panel inside entry door
Technical Diagrams

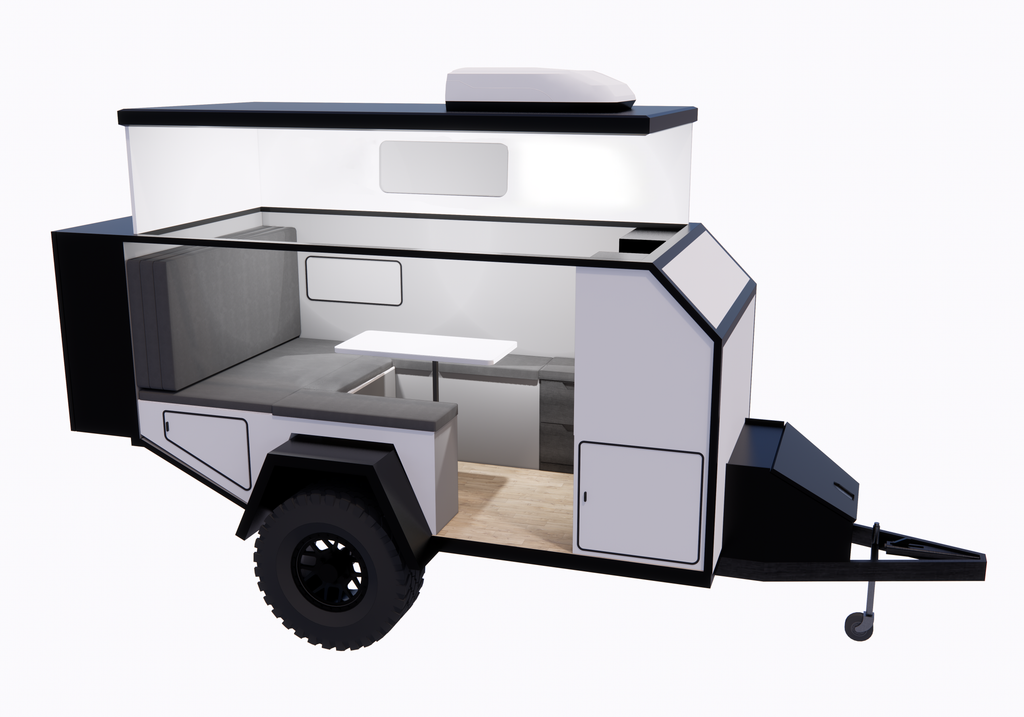

Loading Floor Plan - Dinette...

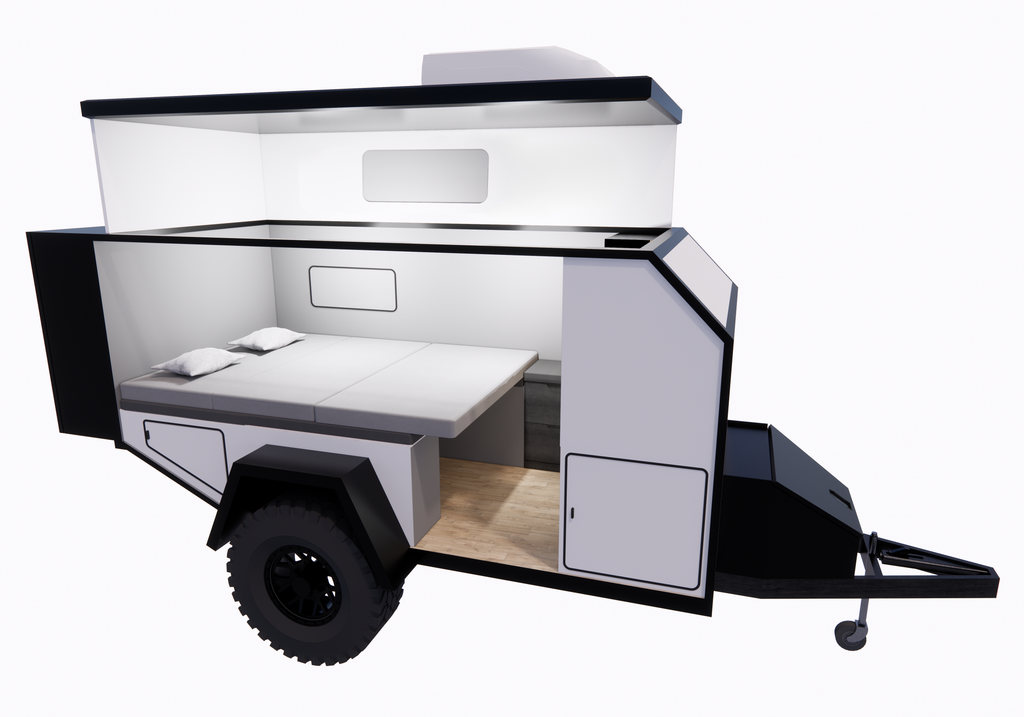

Loading Floor Plan - Bed...
Ready for Your Next Adventure?
Build your AppalachianX with the features you need for your next overlanding adventure, or find an ambassador near you to see one in person.
