TetonX

TETONX BASE PRICE: $64,500

The TetonX off-road camper trailer is versatile for all kinds of adventures. The TetonX is built in the USA and features a full-pop top that provides a spacious interior to relax in. The rugged shell consists of fiberglass and foam walls with an aluminum structure, on a 2×5 steel chassis. The base unit weighs in at just over 3,000 lbs and features an intuitive and convenient kitchen design, a cutting edge Victron electrical system, and a proprietary go-anywhere air suspension. Add options like 12V air conditioning, solar panels, tons of storage, and bunks to make it perfect for the getaways you have been dreaming about.

Build Your TetonX

OFF ROAD. OFF GRID.

BUILT TO LAST

Thoughtfully engineered to withstand the harshest conditions with premium materials and construction.

SPACIOUS INTERIOR

The pop-top design provides comfortable standing room inside and offers plenty of natural light and fresh air.

LUXURIOUS KITCHEN DESIGN

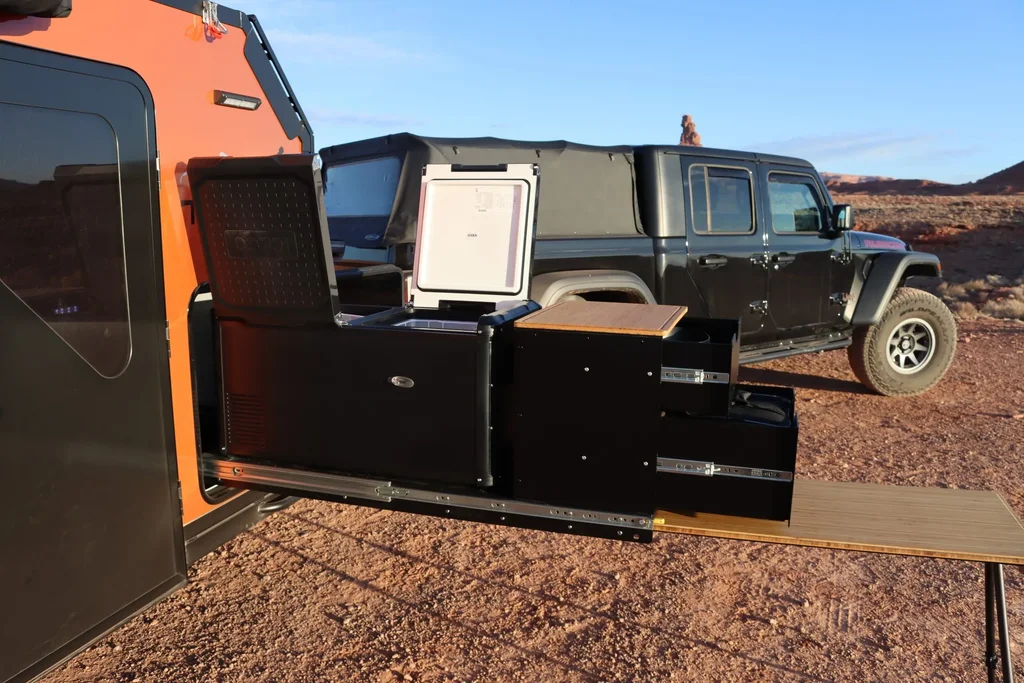

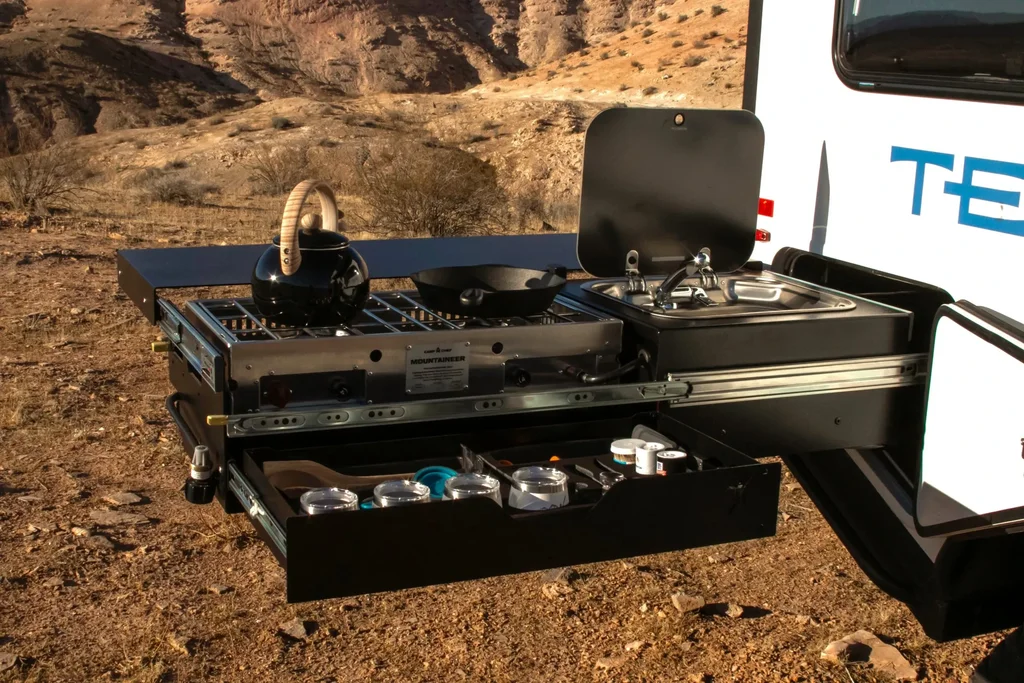

Convenient slide-out kitchen with stove, sink, fridge/freezer and plenty of counter space. Meal prep is easy in any environment.

OFF ROAD, OFF GRID

Air suspension, high clearance, and all-terrain tires ensure you can reach remote destinations with confidence.

FAMILY FRIENDLY SLEEPING

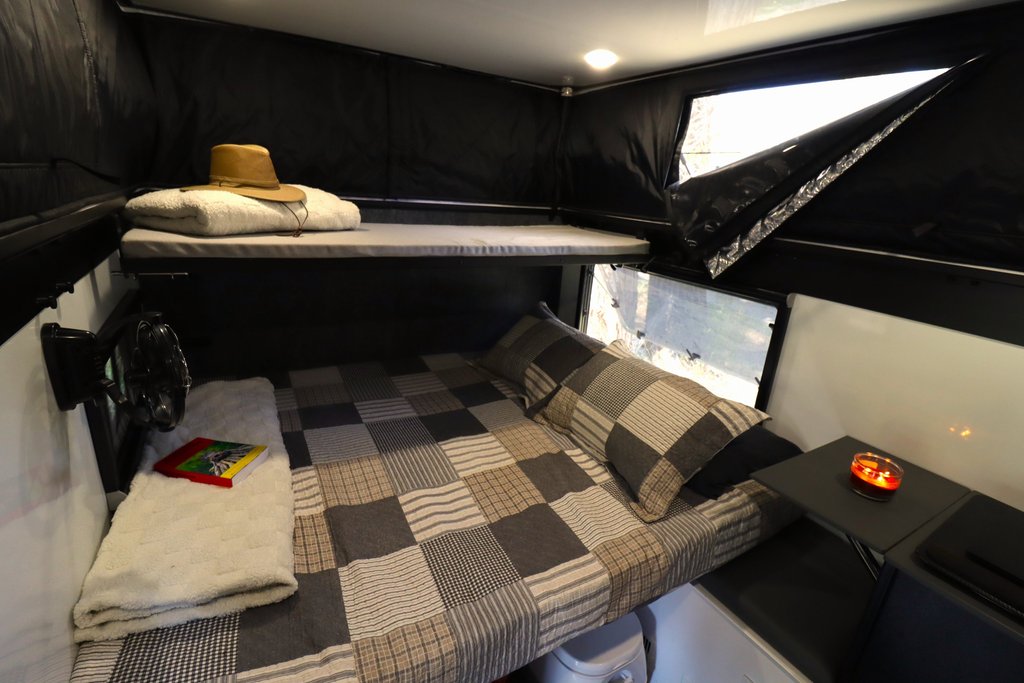

Comfortable sleeping arrangements with optional bunk and tent configurations to sleep up to 7.

PERSONALIZE YOUR BUILD

Extensive customization options let you configure your TetonX exactly how you want it for your adventures.

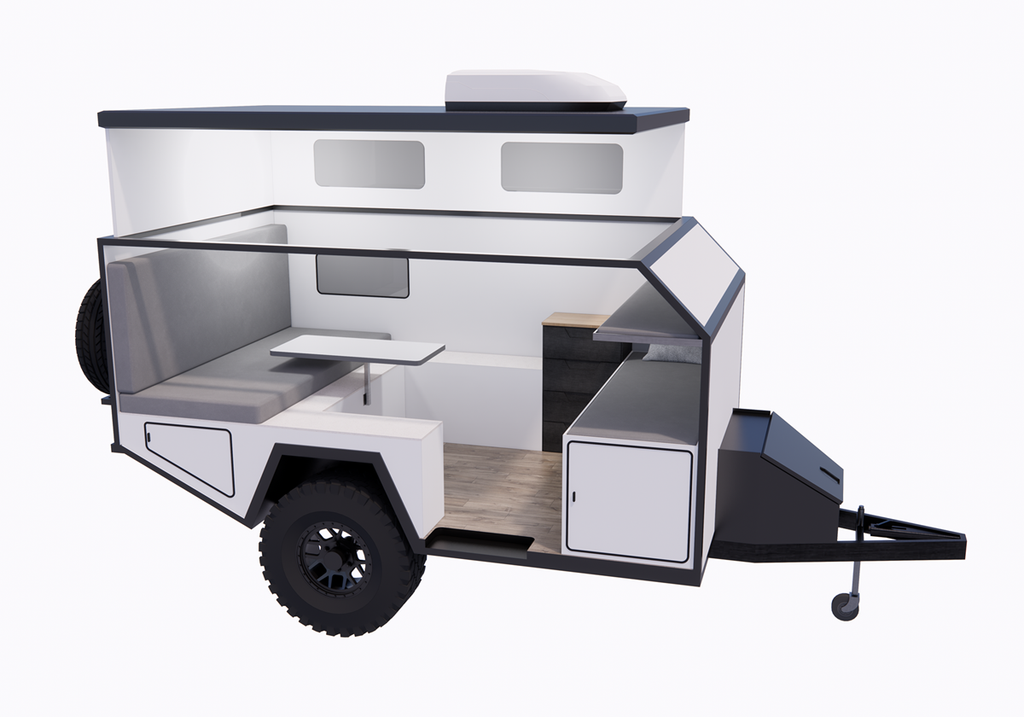

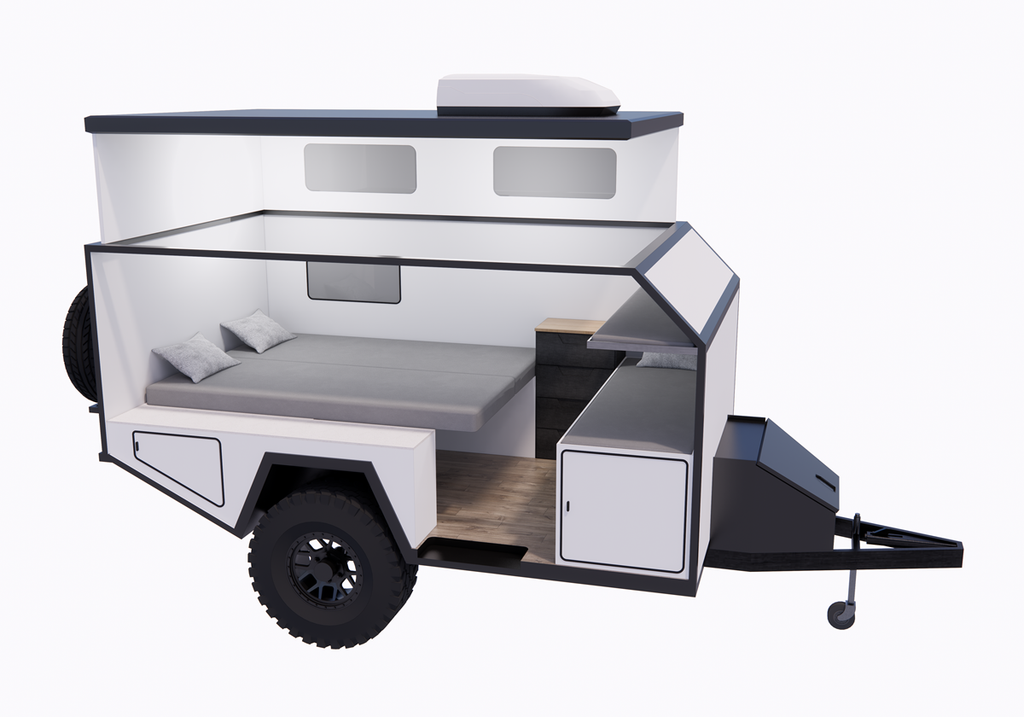

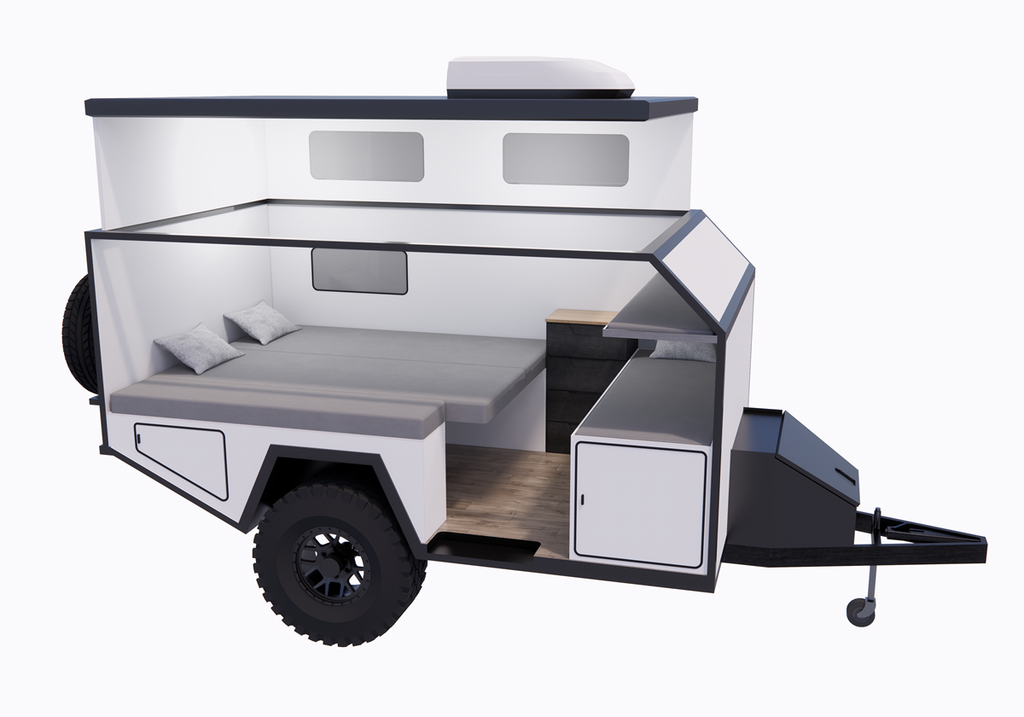

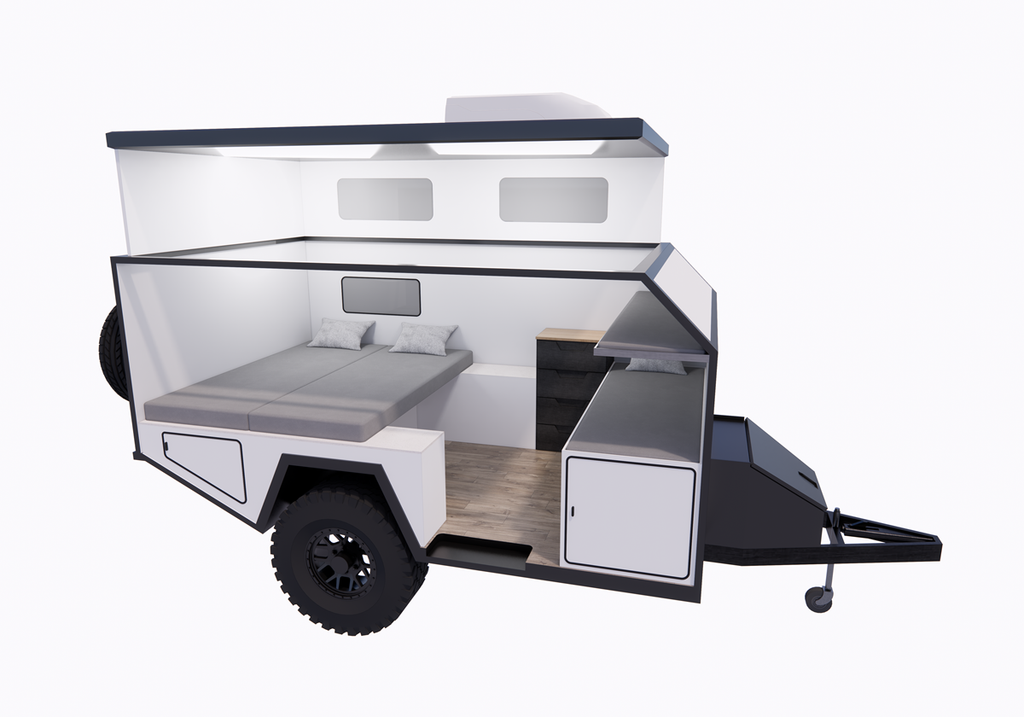

Specifications & Diagrams

Technical specifications, dimensions, and floor plans for the TetonX overlanding trailer.

Key Specifications

Specification	Value
Starting at	$64,500
Dry Weight (Base)	3000 lbs
Dry Weight (All Options)	3800 lbs
Tongue Weight (Base)	375 lbs
Tongue Weight (All Options)	550 lbs
GVWR	5500 lbs
Overall Length	203″ (16’11”)
Overall Width	90″ (7’6″)
Overall Height (Roof Lowered)	90.25″ (7’6.25″)
Interior Length	120″ (10′)
Interior Width	76″ (7’4″)
Interior Height - Roof Lowered	59″ (4’11”)
Interior Height - Roof Raised	80″ (6’8″)
Ground Clearance	21" (1'9")
Battery Capacity	300 AH
Inverter Capacity	3000 VA
Water Tank Capacity	30 gallons
Wheel Size	17 inches
Tire Size	285/70R17

Standard Features

Exterior

OVS 270º Nomadic Awning
Nomad Air Suspension
17" wheels
33" BFG A/T tires
54" entry door with full screen door and privacy cover
Cruisemaster DO35 articulating hitch
Custom Tongue Box
Ark Jockey Dual Wheel Jack
Front slide out tray with a 2 drawer cabinet and 75L Iceco fridge/freezer
Rear slide out tray with a sink, 3-burner Partner Steel stove, and sliding countertop
Dual 11 lb propane tanks with lockable mounts
Amber dimmable rock lighting
Exterior white/amber lighting
110V outlets inside both rear cargo doors

Interior

Split queen mattress with custom removable covers
Dinette table with Lagun table leg
Truma Aquago Comfort Plus on demand propane water heater
30-gallon freshwater tank
Truma Varioheat propane furnace
MaxxAir MaxxFan Deluxe 10 speed ventilation fan
Dimmable LED lighting on separate switches for front/rear
Charging stations with 12 volt socket and USB power ports
(2) 110V outlets
Flat glass windows with shade/screen
Pop-up topper with integrated windows

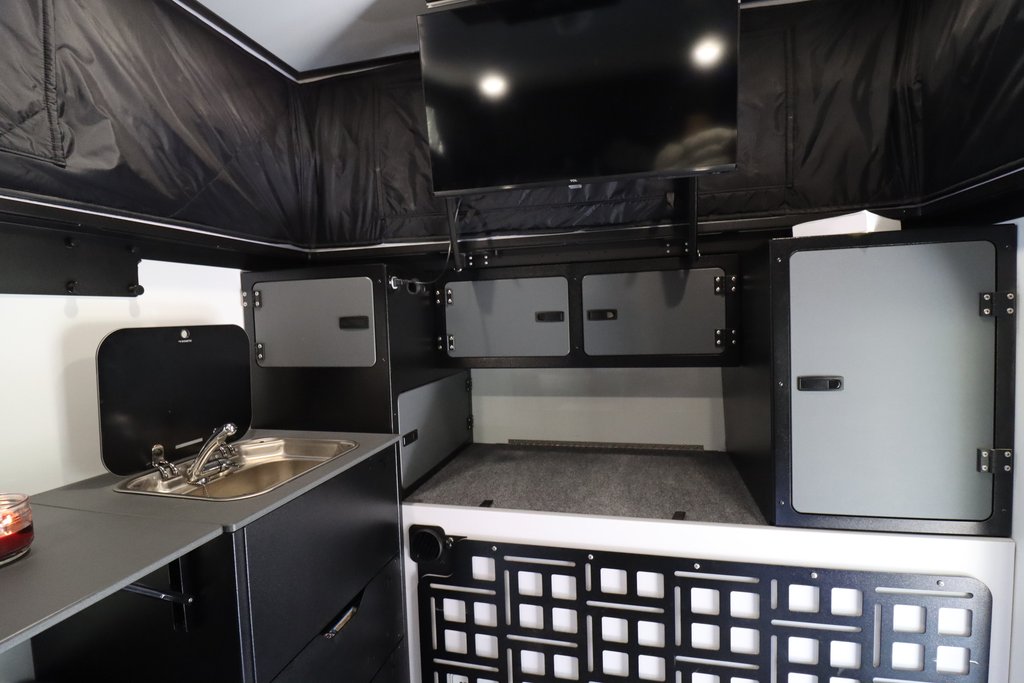

Hinged drop-down storage shelves
Waterproof vinyl flooring
Interior fridge/freezer access door

Electrical and Lighting

Victron 300AH lithium battery
Victron MultiPlus 3000VA charger with integrated inverter
Victron GX Touch 50 touch screen monitor
Victron Orion XS 50A DC/DC charger for vehicle chargeback
12V outlet in front storage area for refrigerator power
Breakaway safety system
Prewired for roof-mounted solar panels
SAE sidewall port for up to 400W regulated portable solar panels
30A sidewall port for connection to shore power or a generator
12V power port externally mounted by awning hinge for additional awning lighting
Easy access switch panel inside entry door
